vSphere 6.0 – NFS 4.1 supported with Kerberos Authentication and Multipathing

Posted by on in , | 8005 Views

As we all aware that vSphere 6.0 is released with lot of new features and enhancements. One of the new feature of vSphere 6.0 is support for NFS 4.1. vSphere 6.0 supports NFS 4.1 with kerberos authentication along with mutipathing support. You will be able to add multiple IP address associated with single NFS mount for redundancy. With vSphere 6.0 support for NFS 4.1 have many new features and improvements

  • Session Trunking/Multipathing
  • Improved Security with Kerberos Authentication
  • Improved Locking(In-band mandatory locks)
  • Better Error Recovery(Client and server not state-less any more, with recoverable context.)

Choose NFS 4.1 Version:

You will be provided with the option to choose the NFS version during NFS datastore create option. You should use the same NFS version for the mounting the NFS datastore across all ESXi hosts. Mounting one or more hosts to the same NFS datastore using different NFS versions will lead to data corruption. In simple terms, If you have selected NFS 4.1 for the particular datstore, you should mount that NFS datastore with version NFS 4.1 in all ESXi hosts.

vSphere 6.0- NFS 4.1 Datastore

Configuring Kerberos Authentication:

Configuring Kerberos Authentication is a 4 step process. Follow the steps in order:

  1. Configure NTP settings of the ESXi host
  2. ESXi host must joined to the domain

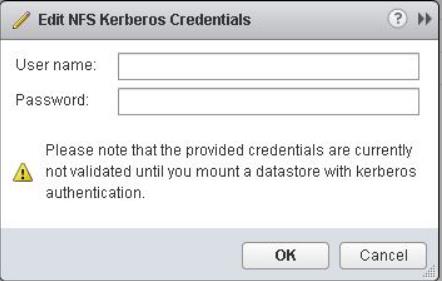

  3. Set NFS Kerberos credentials

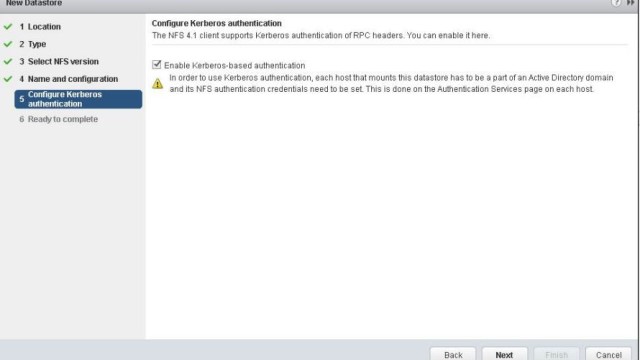

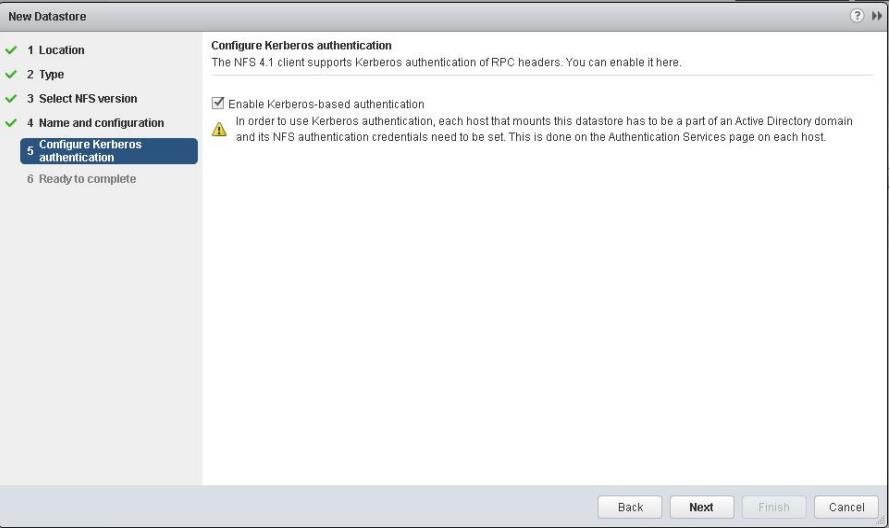

vSphere 6.0- NFS 4.1 _1      4. Enable Kerberos while creating datastore

vSphere 6.0- NFS 4.1 _2

 Configuring NFS Multipathing:

Enter the datastore name, folder path, and NFS server address. Enter multiple IP addresses that are available on your NAS to achieve multipathing to NFS server mount point, If the server that will back this datastore has trunking enabled.

vSphere 6.0- NFS 4.1 Datastore_1

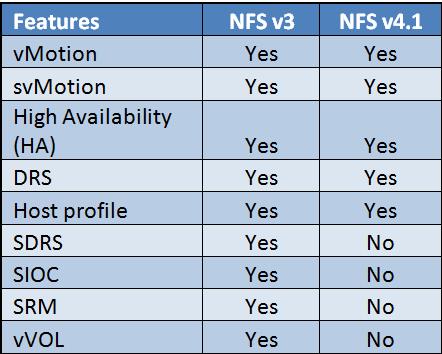

 vSphere Feature Comparison between NFS v3 and NFS v4.1:

NFS datastores which are mounted using the NFS version 4.1 cannot work with few of the vSphere Features like SDRS (Storage DRS), SIOC (Storage I/O Control), SRM (Site Recover Manager) and Virtual Volumes (VVols).

vSphere 6.0 - NFS v3 & NFS v4.1 Feature Comparision

I hope this post helps you to understand new NFS features available with vSphere 6.0. Thanks for Reading!!! Be Social and share it in social media, if you feel worth sharing it.
