Upgrade vCenter Server Appliance 5.5 to 5.5 Update 1

Posted by on in , | 16170 Views

As we already discussed about vSphere 5.5 update 1 in our previous post “vSphere 5.5 Update 1 download links and Release Notes“ ,  VSAN is available as part of vSphere 5.5 Update 1. It is the most important task of the VMware Administrators as now of is  to upgrade your vCenter server and ESXi host from 5.5 to 5.5 update 1 to utilize the VSAN in your environment. Want to know the basics of VSAN, take a look at the post “Basics of VSAN“.  First task in upgrading your vSphere 5.5 to 5.5 update 1 is to upgrade your vCenter Server. Upgrading vCenter Server is a straight forward process. So i am going to explain the procedure to upgrade your vCenter Server Appliance 5.5 to 5.5 Update 1. Ensure that your vCenter Server Appliance is connected to the internet to update to vCSA 5.5 Update 1 using this method.

Access your vCenter Server Appliance admin page using the below url format

https://<ip or host of vCSA>:5480

Click on Update tab on the vCenter server appliance home page.

VCSA 5.5 Update _1

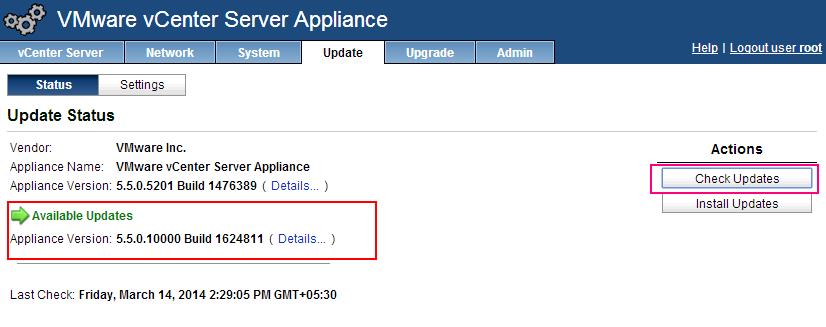

Under Status tab option, Click on Check Updates option. You can see the Available Updates which are available to update your vCenter Server Appliance. Current Version  of vCSA appliance is 5.5.0.5201 Build 1476389 (which is vCSA 5.5 0.b) and the available update is vCSA 5.5.0.1000 Build 1624811 (Which is vCenter Server Appliance 5.5 Update 1). You can see the details by clicking on the Details option.

VCSA 5.5 Update _2Once you have validated the available updates (i.e vCenter Server Appliance 5.5 Update 1), Click on Install Updates.

VCSA 5.5 Update _3Click on Ok to confirm the Update to vCenter Server Appliance 5.5 Update 1.

VCSA 5.5 Update _4

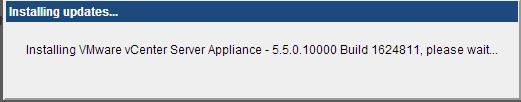

It will take  few minutes to complete the installation of the vCSA 5.5 Update 1.

VCSA 5.5 Update _5

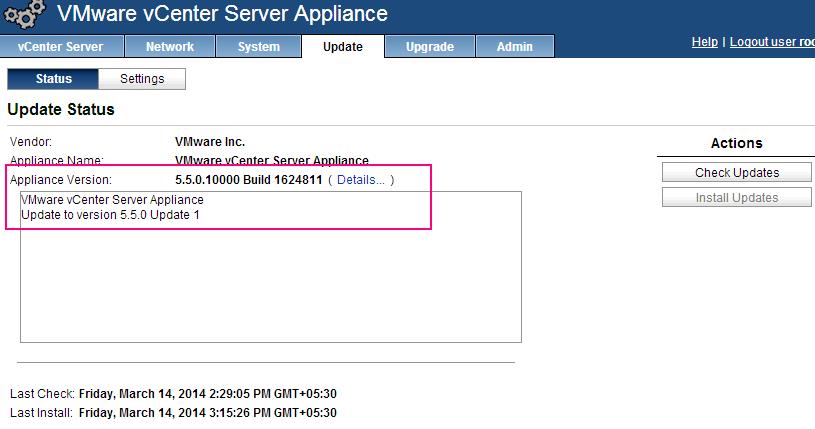

Once the upgrade from vCSA 5.5 to vCSA 5.5 update 1 is completed. Reboot the vCenter Server Appliance for the changes to take effect. After reboot, Verify the current version of your vCenter Server Appliance . It should be 5.5.0.10000 Build 1624811 for vCenter Server Appliance 5.5 Update 1.

VCSA 5.5 Update _7That’s it, We are done with upgrading our vCenter Server Appliance 5.5 Update 1. Next step will be upgrading your ESXi host  5.5 to 5.5 Update 1 to prepare it for VSAN.  Take a look at the Post “Upgrading ESXi 5.5 to ESXi 5.5 Update 1”.  I hope this is informative for you. Thanks for Reading !!!. Be Social and share it in social media, if you feel worth sharing it
